Writing CSS

Modified from slideshow by GU Yiling (original).

In this lecture:

General knowledge
Including CSS Files
Syntax
Cascading
Values & units
Layout basics

What is CSS?

Cascading Style Sheets

(Hella) Abridged Specification History

CSS 1 (1996)
font, color, align, box-model, #id, .class, ...
CSS 2 (1998)
position, z-index, media, text-shadow, ...
CSS 2.2 (2016)
Read the Spec
CSS 3 (Now)
Grid template layout, extended and basic box model revisions, aural style sheets (#a11y), and numerous changes to other HTML models (lists, links, @media queries, ...), etc.

Recap

Cascading Style Sheets
Akin to any web technology, people are constantly revising it through the CSSWG standards body: CSS 1, CSS 2, CSS 2.1, CSS 3

`/* questions? */`

Including CSS into HTML

How?

1. `<link>` element

<!DOCTYPE html>
<html>
<head>
  <meta charset="utf-8" />
  <title>Hello World</title>

  <link rel="stylesheet" type="text/css" href="style.css" />

</head>
<body>
...

USE this method.

2. `<style>` element

<!DOCTYPE html>
<html>
<head>
  <meta charset="utf-8" />
  <title>Hello World</title>
  <style type="text/css">
      /* ... */
  </style>
</head>
<body>
...

DO NOT use this method.

3. Inline styles

<body>
  <h1 style="color: red;">
      Hello World
  </h1>
  <p style="margin: 2em 0;">
      Paragraph here
  </p>
</body>

DO NOT use this method.

4. `@import` rules

@import url(normalize.css);
@import url(layout.css);
@import url(typography.css);

nav {
  position: fixed;
  top: 0;
  left: 0;
  height: 3em;
}

DO NOT use this method.

Performs worse than the <link>!
See don’t use @import.

`/* questions? */`

How to write CSS
A primer

Interactive CSS Vocabulary Site

Open this and follow along

via Vocabs

Declarations

property: value

Declaration blocks

{ declaration; declaration; ... }

/* single-line */
{ display: block; height: 300px }

/* multi-line */
{
    display: block;
    height: 300px;
}

Semicolons (;) are only required between declarations.

Selectors

Pattern matching against document trees

Types of Selectors

Selectors help you point to (select) specific HTML elements.

Basic simple selectors	Examples
Type selectors	HTML tags: `nav`, `section`, `header`, `p`
Class selectors	HTML classes that uses dot scheme in CSS: `.ds-body-img`
ID selectors	HTML classes that uses hash scheme in CSS: `#data-story-personal`
Universal selector	Selects all-the-HTML-things: `*`
Attribute selectors	Selects HTML tag attributes: `[title]`, `[rel~="copyright"]`
Pseudo classes	Adds a CSS-defined class to an HTML element: `:hover`

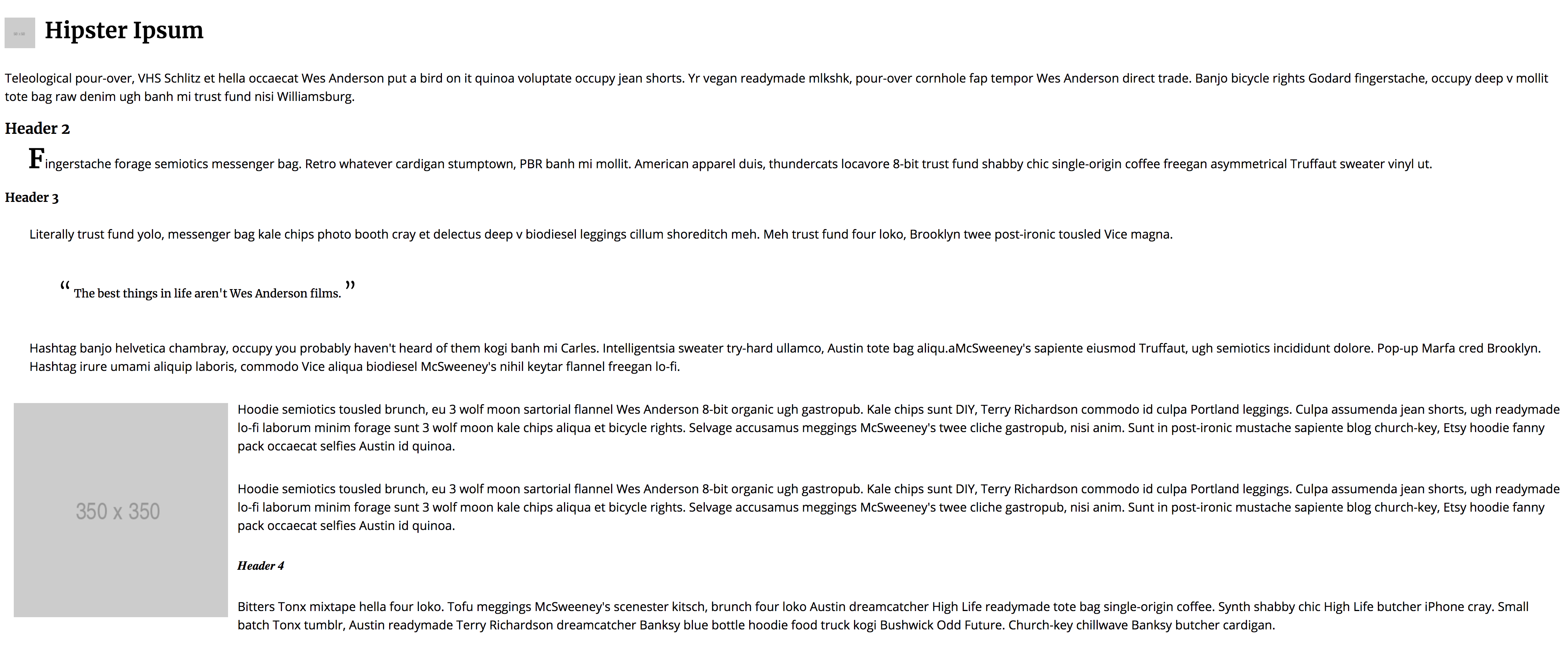

Some Selection Practice

See the Pen Demo basic CSS selection by Chris Lindgren (@lndgrn) on CodePen.

Combinator Selectors

Combinators	Example
Descendent combinator (`␣`)	`.data-story-personal p {...}`
Child combinator (`>`)	`ul#resources > li {...}`
Adjacent sibling combinator (`+`)	`h1 + h2 {...}`
General sibling combinator (`~`)	`img ~ p {...}`

Practice the Descendent & Child

See the Pen Demo basic CSS selection by Chris Lindgren (@lndgrn) on CodePen.

Question: How can combinators work on the document tree?
Answer: CSS uses `HTML` containing block rules.

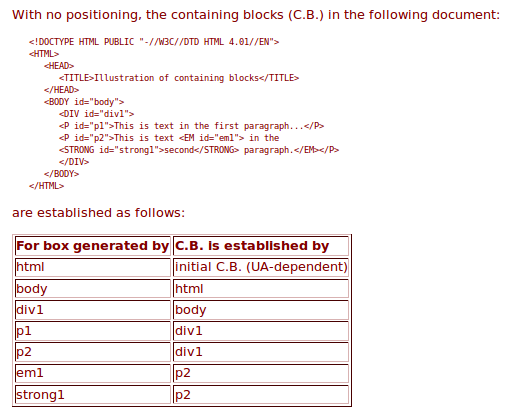

Containing blocks are established by parent box-context. (See W3C spec.)

Pop Quiz!

Based on these selectors declaration blocks, tell me how the elements will be styled.

JS Bin on jsbin.com

Pseudo-element Selectors

::first-line
::first-letter
::before
::after

Pseudo-element Selectors

JS Bin on jsbin.com

Pseudo classes

Type	Example
Location	`:link`, `:visited`, `:target`, ...
User action	`:hover`, `:focus`, ...
Tree-structural	`:first-child`, `:nth-child()`, ...

Fun with the `:nth-child()` (pseudo-class)

JS Bin on jsbin.com

`/* questions? */`

Cascading & Inheritance

Basic Cascading Heuristic

Origin and importance
Where did the CSS sheet and rule come from? And what level of importance does it have?
Specificity
How specific is the declaration's selector? More specific selections are used over more general.
Last Rule / Order of appearance
Where is the declaration block declared in the stylesheet?

1. Cascading: Origins & importance

UA, user, author

and !important

See this article on "The Cascade"

2. Specificity (order based on selector types)

ID
#main
class
.title
type
article
pseudo-class
:hover

Codepen Cascade Example

See the Pen Using the cascade in CSS by Chris Lindgren (@lndgrn) on CodePen.

Recap

Origin/importance > specificity > order
Author > user > UA, reversed when important

Pop Quiz!

What is the color and text-decoration of the “Go to post” anchor/link?

JS Bin on jsbin.com

`/* questions? */`

Values and Units

15px
1.25em
rebeccapurple == #663399
url(logo.png)
...

Numerical Values

Integers: integer
border-radius: 15px; z-index: 1; order: 3;
Numbers: number
line-height: 1.5; flex: 0.618;
Percentages: percentage
width: 80%; font-size: 120%;

Color Values

Keywords
lightgreen, gold, olivedrab, etc.
Hexadecimal notation
#69c, #abcdef, #eee, #123456 ...
Functional notation
rgb(200, 150, 100), hsla(120, 100%, 50%, 0.5), ...

See more in CSS Color Module Level 4.

Font-Relative Length Values
(csswg spec)

Most commonly used: em & rem
Numerous others for another day: vw, vh ex, ch, etc.
Essentially, these values are computed values relative to another value declared elsewhere.

Example Use of Font-Relative Length Values

See the Pen Basic heading level hierarchies by Chris Lindgren (@lndgrn) on CodePen.

Absolute lengths

px, pt, in, cm, mm, ...

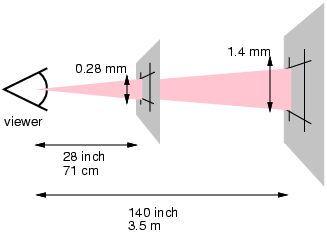

Extra tidbit: Learn about how pixels are defined -- Physical or pixel?

Resource Locators: url

body {
    background: url(../img/starrynight.png);
}

Recap

Data types: numbers, integers, lengths, colors, ...
Length: relative vs. absolute
Color: keywords, hex, rgb(a), hsl(a), ...

/* questions? */

Positioning Basics

Elements Defined by Flows
Here are the Normal Flow Definitions

Block Formatting Context (cf. Duckett, p. 361)
Inline Formatting Context (cf. Duckett, p. 361)

Review: BFC vs. IFC

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

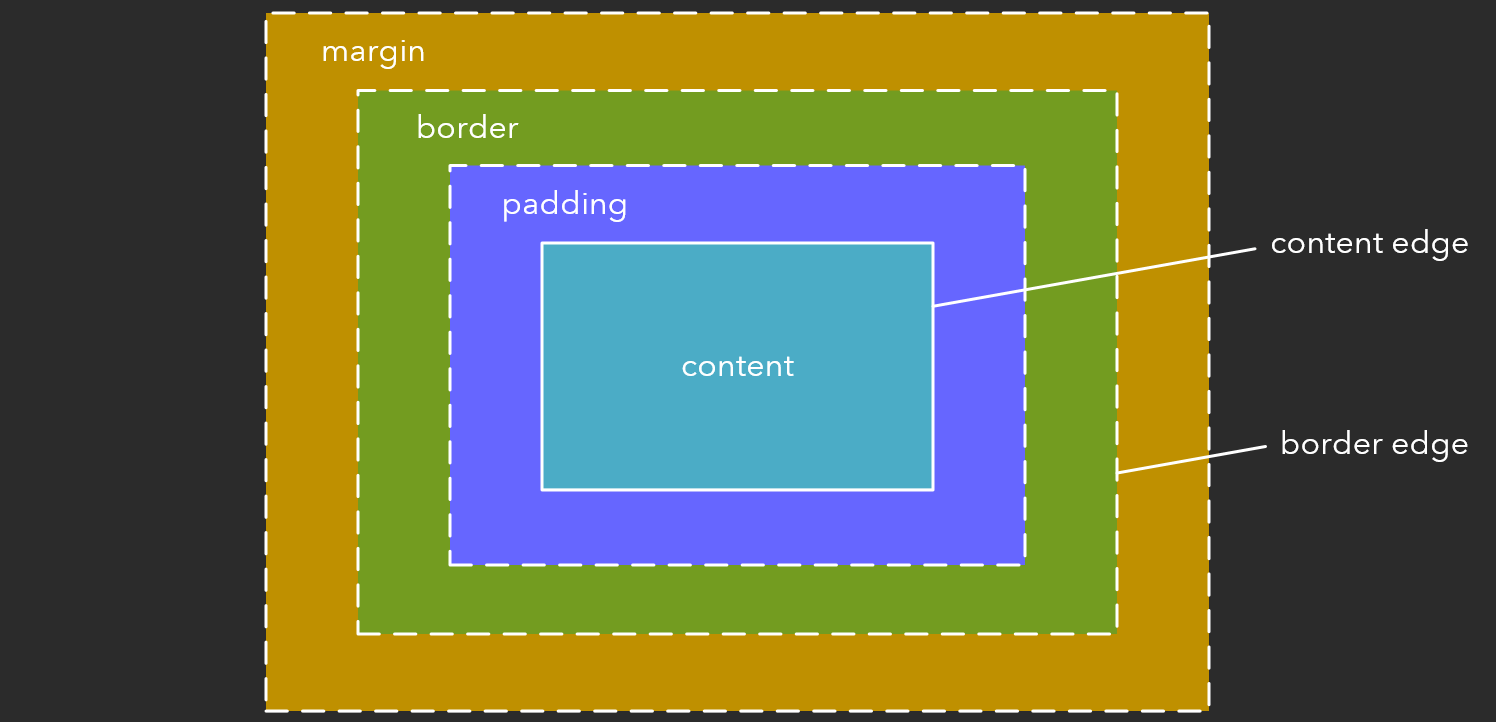

Box Model
All elements have the definable properties below.

box model consists of content, padding, border and margin

Test it out with your Inspect Element.

Positioning Schemes for Different Element Flows & Behaviors

position: default (normal)
position: absolute
position: fixed
position: relative
float: [left, right, none]

Float positioning

float: left;

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Fixed vs. Absolute Positioning

Rough main difference:
>> fixed positions an element based on the viewport.
>> absolute positions an element based on the closest parent containing block.

Example: `fixed` & `absolute`

See the Pen Containing blocks and position properties by Chris Lindgren (@lndgrn) on CodePen.

Recap

Box model
4 position schemes:
normal flow, float, absolute, and fixed
Coming next Tuesday: display behaviors. Notably, the CSS Grid display.

Summary

History
Syntax
Cascading
Values & units
Positioning basics

Guidelines for Writing Readable & Functional CSS

Documenting & Indexing

/**
 * style.css
 *
 * Styles for the basic HTML5 homework.
 *
 * Index
 * - Base
 * - Header
 * - Article
 * - Footer (Need to write/design)
 */

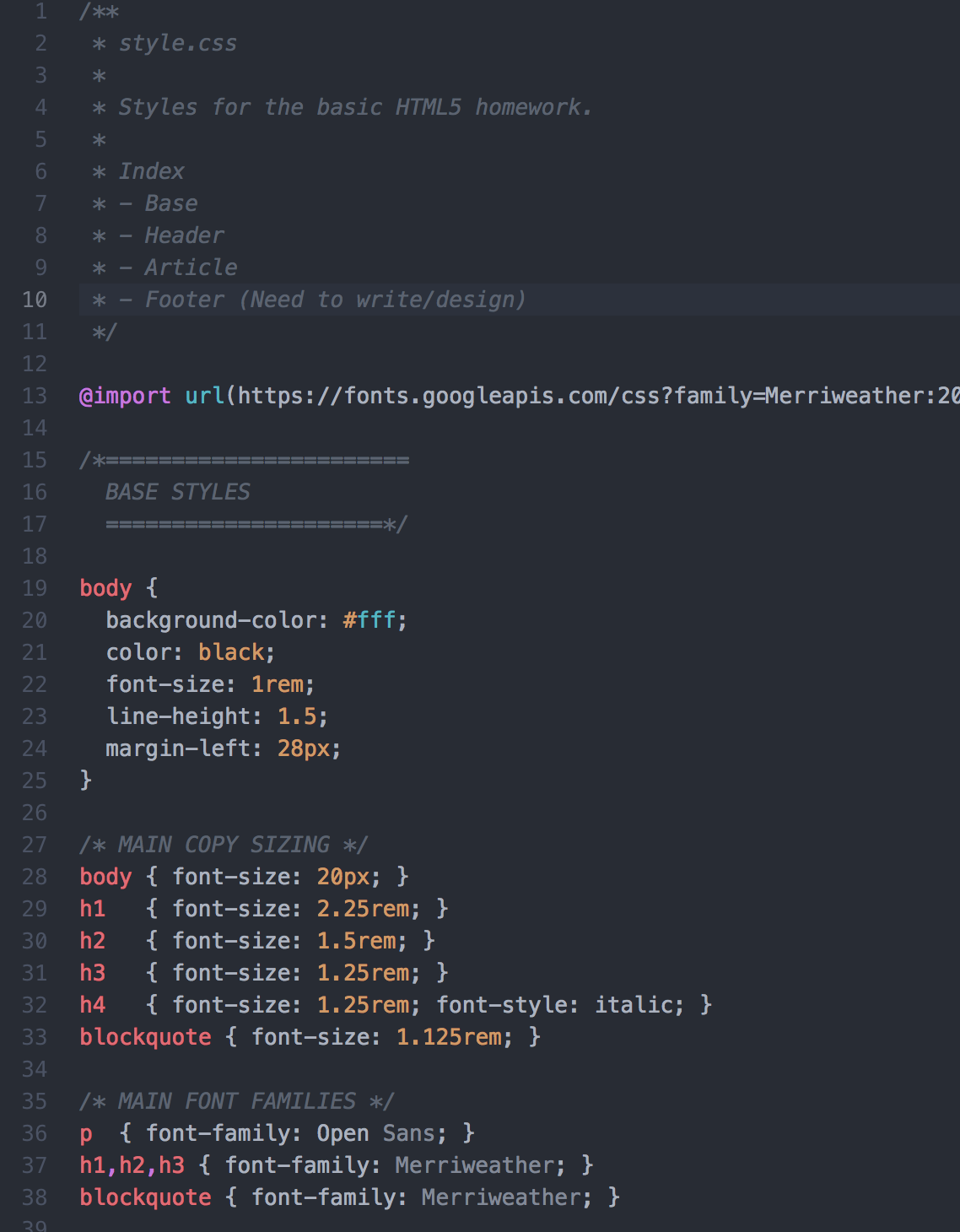

Documenting Scheme with Comments

Screenshot og basic CSS documentation scheme with comments.

Guidelines for Ruleset Writing

each selector on its own new line;
a space before the opening brace ({);
the opening brace ({) on the same line as the last selector;
a space after the colon (:);
each declaration on its own new line;
each declaration indented by 2 or 4 spaces;
a trailing semi-colon (;) at the end of all declarations;
the closing brace (}) on its own new line;

Guidelines for Ruleset Writing

.selector-1 {
  background-color: aliceblue;
  background-image: linear-gradient(white, dimgrey),
                    linear-gradient(black, salmon);
  box-shadow: 1px 1px 1px black,
              2px 2px 1px 1px salmon inset;
  color: black;
  font-size: 1.25rem;
  padding: 15px;
}

Alphabetize Declaration Order within Ruleset

.selector-1 {
  background-color: aliceblue;
  background-image: linear-gradient(white, dimgrey),
                    linear-gradient(black, salmon);
  box-shadow: 1px 1px 1px black,
              2px 2px 1px 1px salmon inset;
  color: black;
  font-size: 1.25rem;
  padding: 15px;
}

Use of Whitespace

Adhere to ~80 characters wide rule
Consistent whitespace; be meaningful about indentation and spaces between blocks, etc.

article p {
  font-size: 1.25rem;
  margin: 15px;
  padding: 25px;
}

Homework: Revise your homework

With this new knowledge and guidelines in mind:

Revise your previous homework with an HTML5 structure, if it doesn't have one already.
Revise the CSS stylesheet with the guidelines in mind.
Experiment with the HTML and CSS by adding and changing some of its structure and CSS/design.
Publish it to a gh-pages website. Be prepared to share it with the class.
